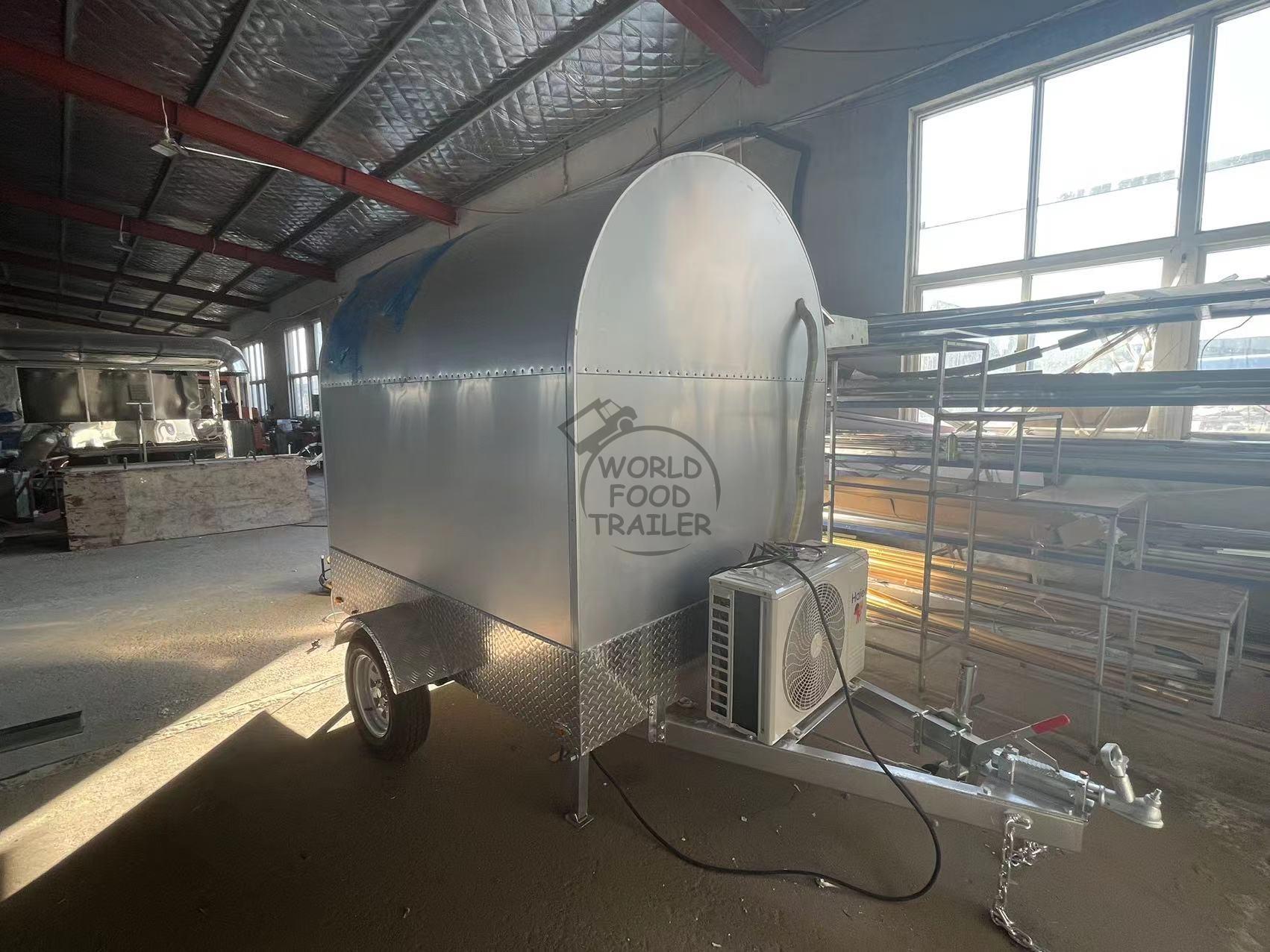

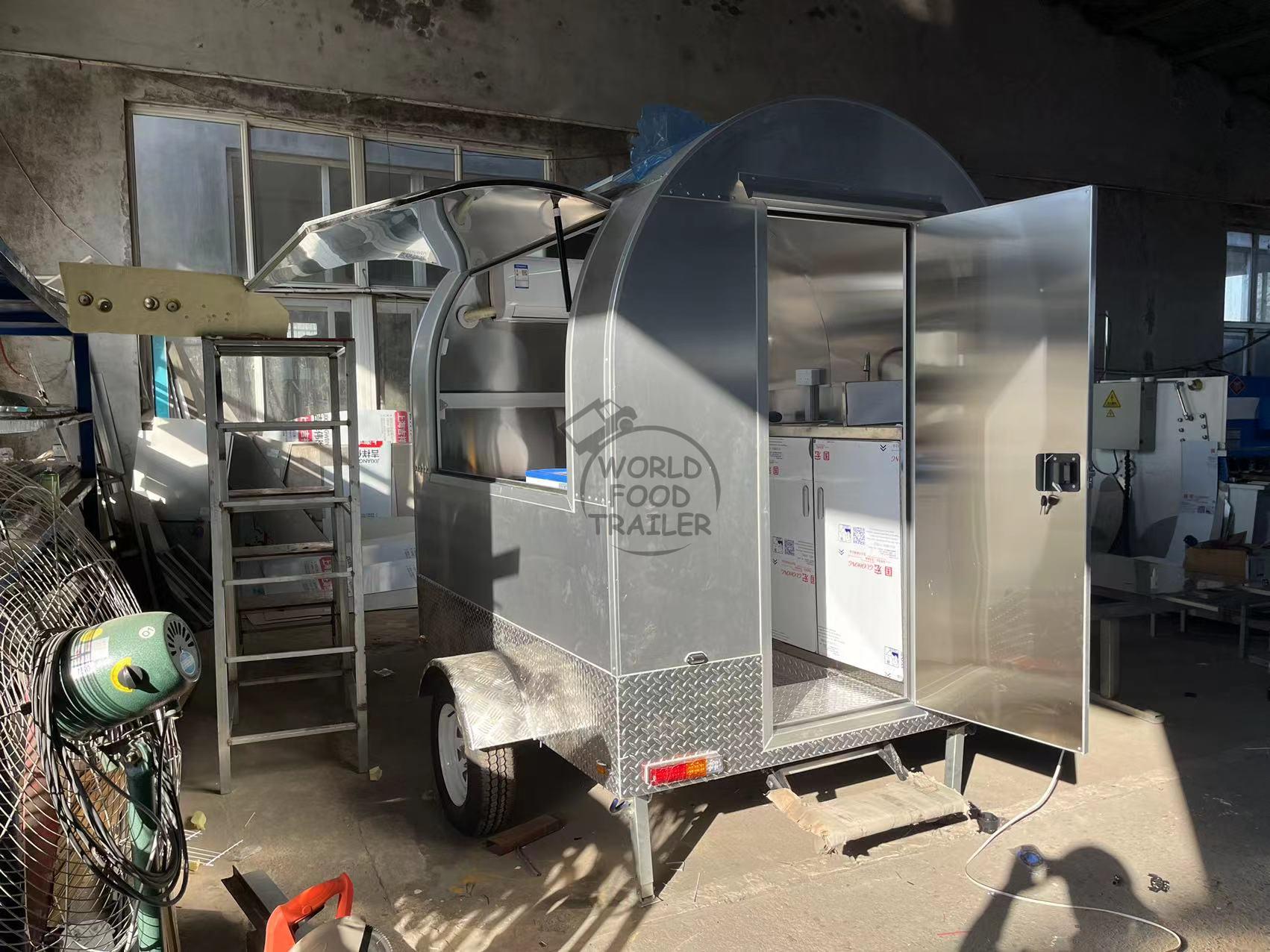

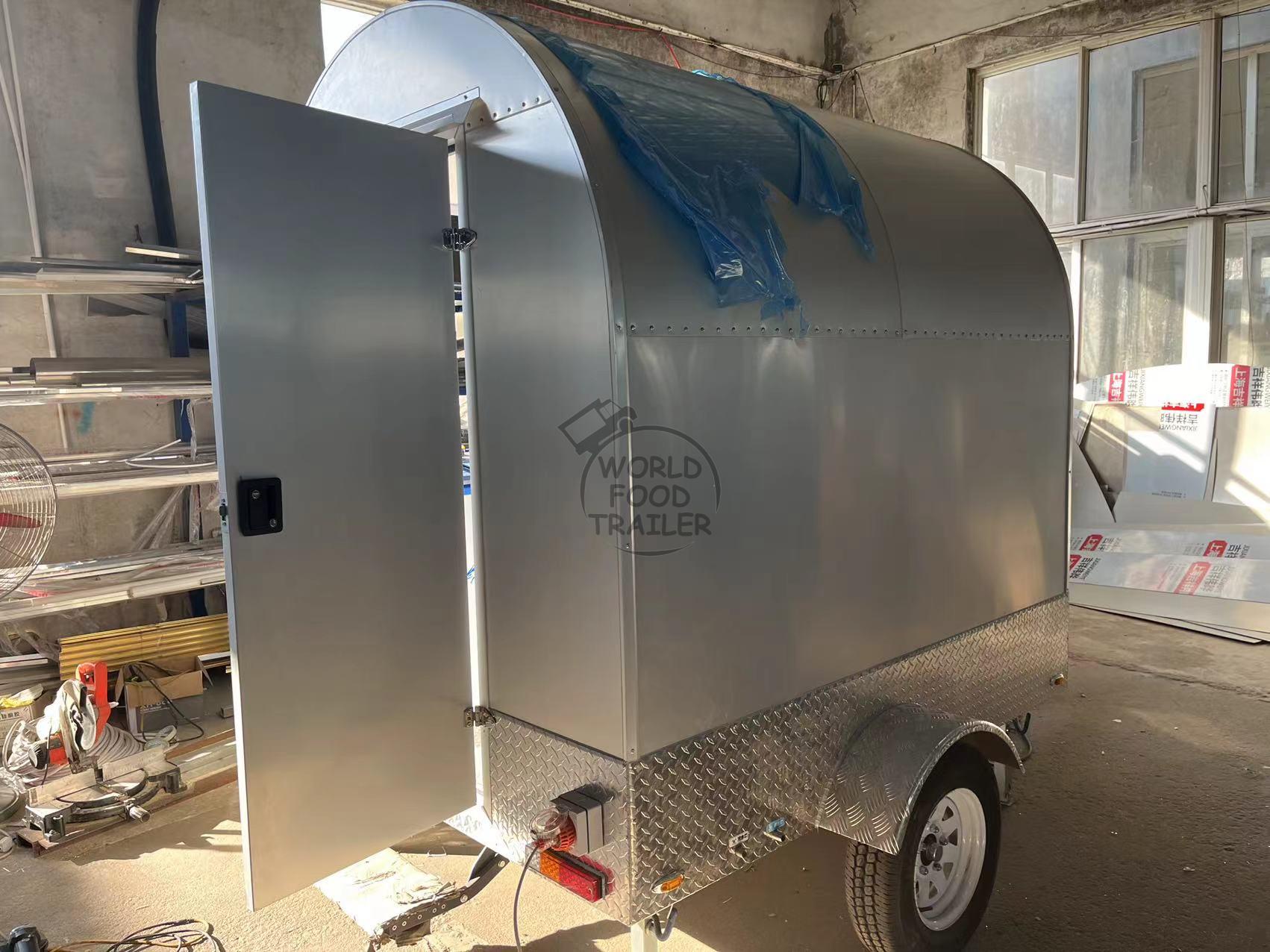

Australia Standard Aluminum Type Round Food Trailer

Material : Stainless Steel 304/Aluminum
Size:2100*1650*2400mm
Weight: 700KG
Axle: Single Alxe with 185R14
Product description: Food Trailer,Food Truck , Smart Round Food Trailer
INQUIRY

1.Product Description:Please noted that all trailer or vans sizes can be customized:

Model No.	CSP-43FT
Body Size	210016502400MM
Overall Size	340016502400MM
AXLES	1
WHEELS	14*5.5,165R14C
MOQ	3 SET
20GP	3 SET
40GP	6 SET

1) Wall:50mm Fiber Glass material with intermediate heat insulation cotton.
2) Chassis and Frame:AL-KO Type Chassis, high carbon frame steel, thickness 4mm
3) Towbar with brake:Drawbar with safety ball headed coupling.Mechanical impact Brake System+Hand Brake System.
4) Floor:Checked aluminum sheet or Australia standard vinyl floor,easy to be cleaned.

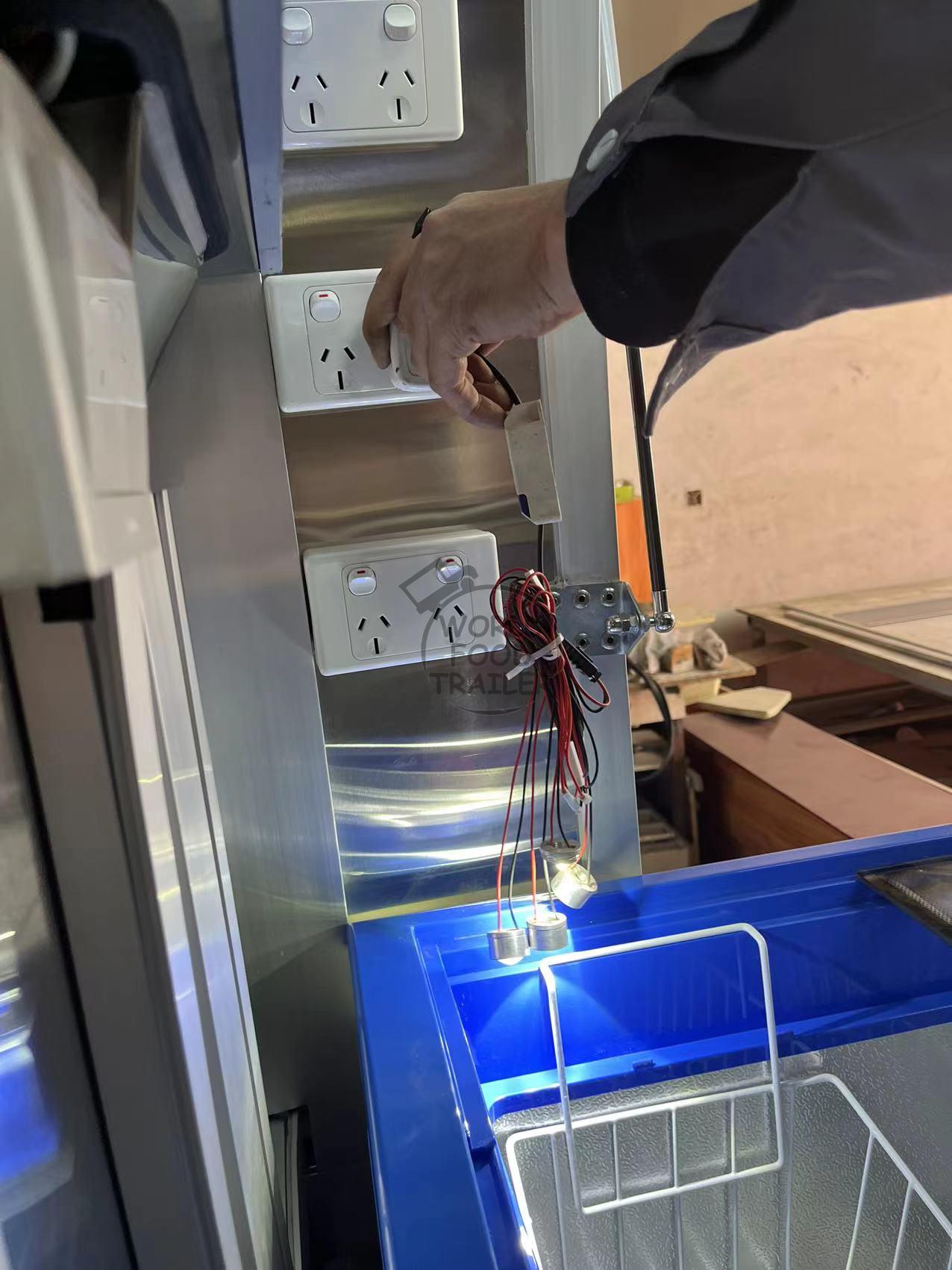

5) Power:LED light,cable socket switch circuit breaker based on global standard as needed are all included.

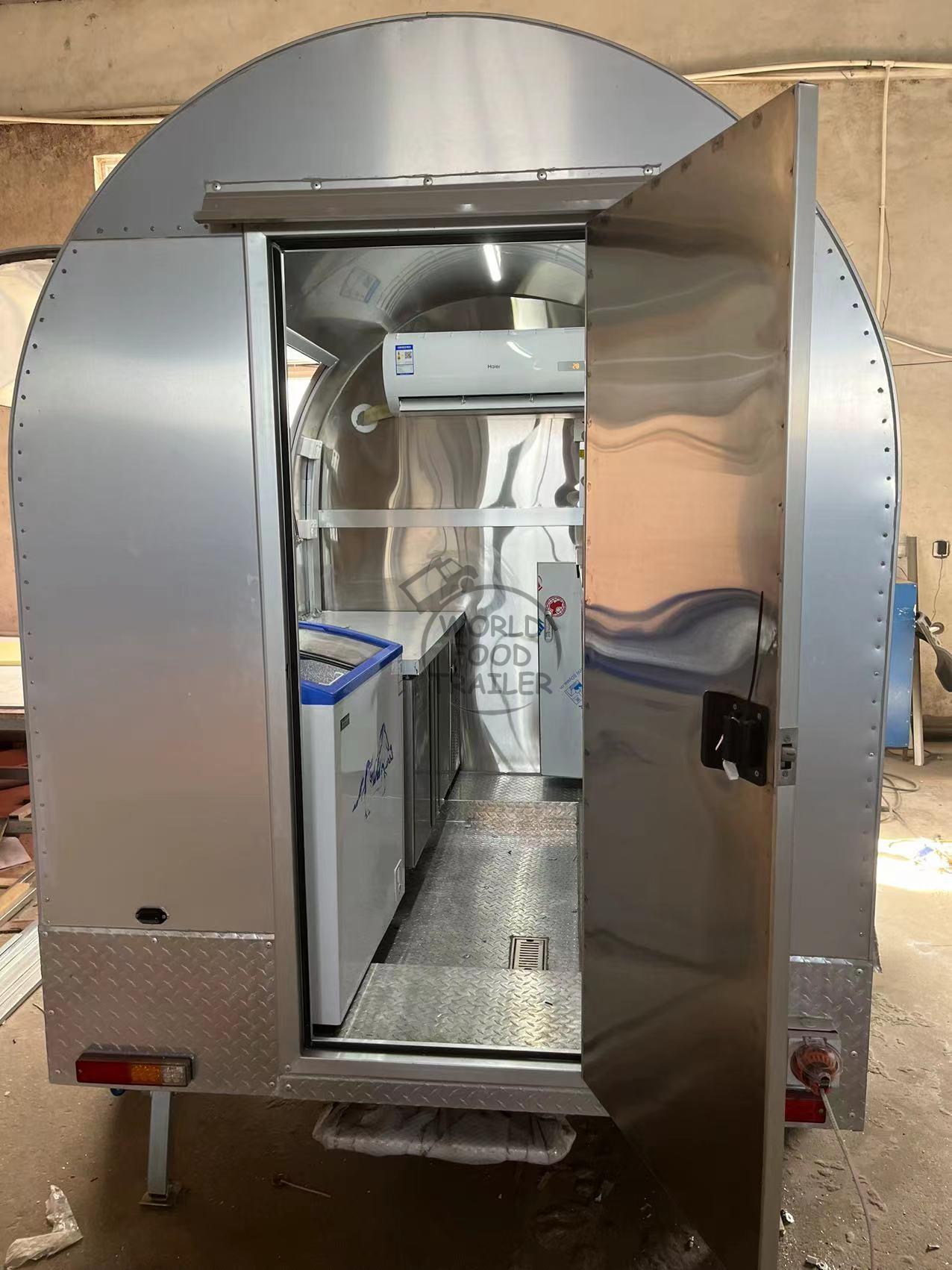

6) Window and door:1 door on back ,1 service window on side.1 window in front.
7) Working bench:food grade SUS 304 with sliding door undernearth.
8) Wheel:Single Torsional axles with 2*R14 wheels. Max of load capacity is 2000KGS
9) Gas holder:1 piece/welded on towbar/stainless steel.
10) Water systems:Heavy-duty water system plumbing with automatic water pump, 12V high pressure RV Standard water pump; on/off control switch; Double stainless steel sinks with faucet, cold and hot water, fresh water tank and waste water tank.
11) Maximum Speed :150KPH.
12) Warranty:1 years.

13) Character:Beauty Shapes,High Strengthen,Anti-Corrosion,Anti-dust,Fire-Resistance and so on.Suitable to be used in wet and high corrosive environment,smooth and easy to clean.
