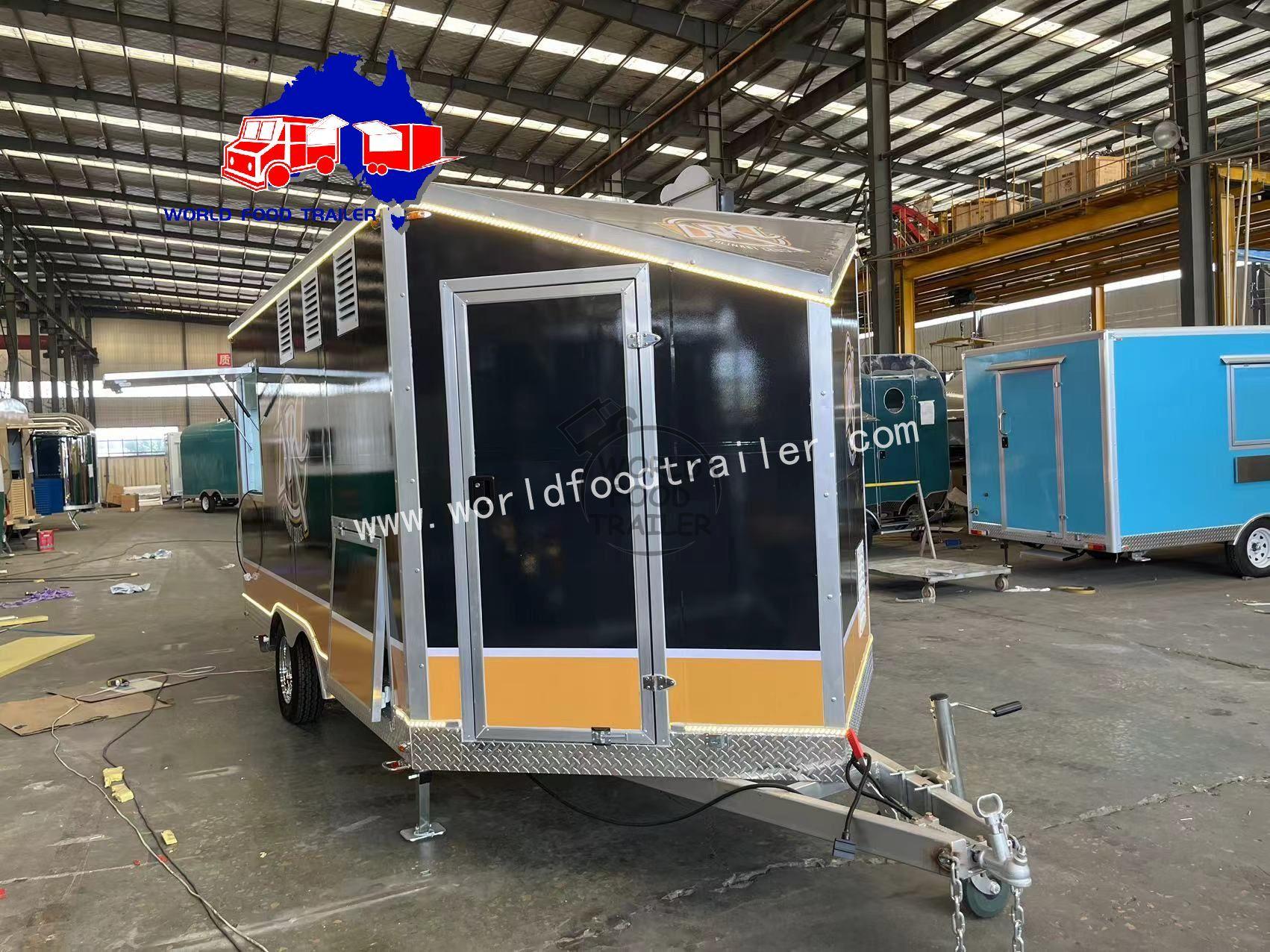

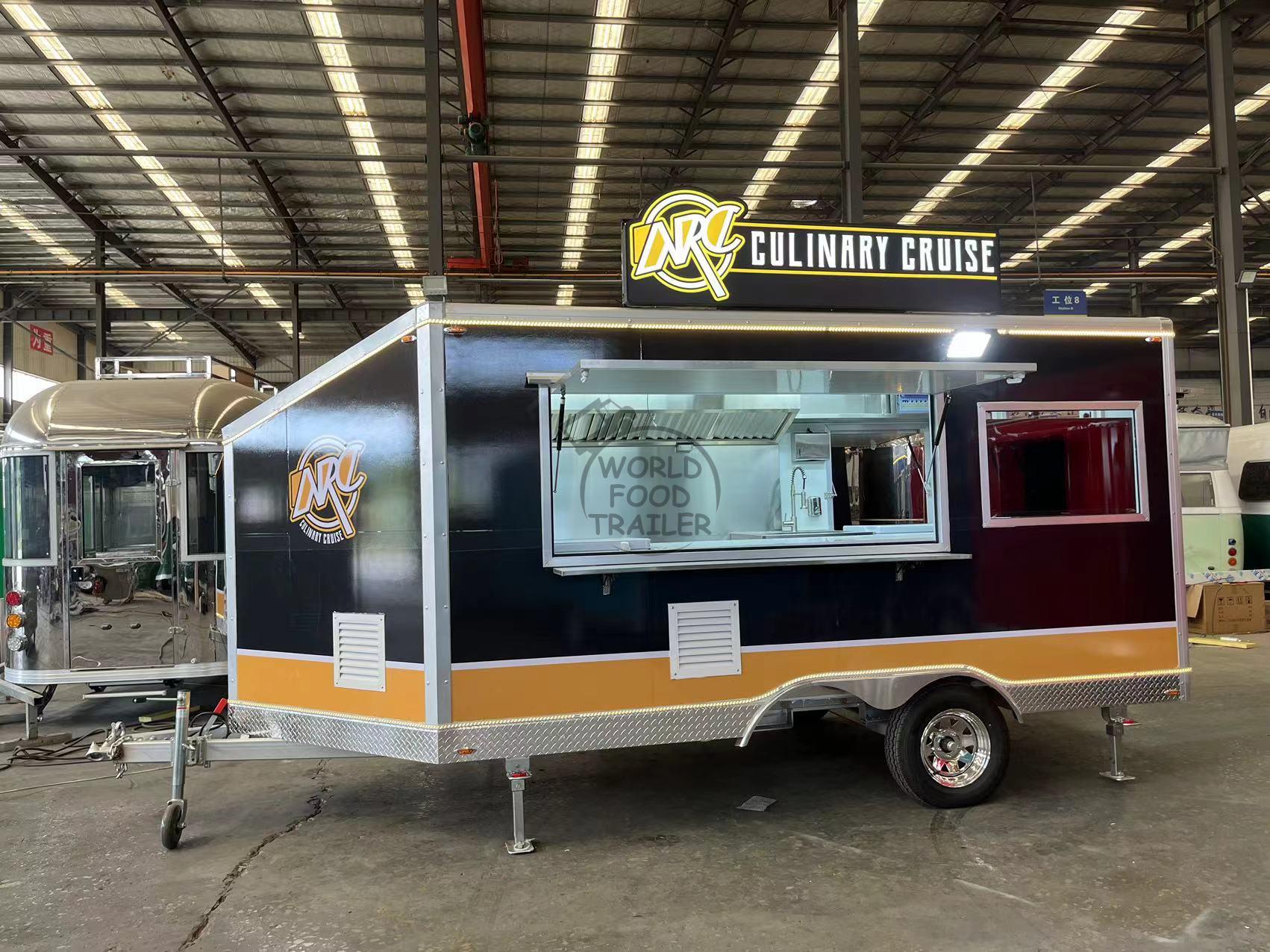

V NOSE New Zealand Square Food Trailer with Full Kitchen

Size:4000mm*2100mm*2500mm
weight：1600KG
Tow Bar : 1500mm
AXLES: 2
Product description: V NOSE Square Food Trailer with Full Kitchen from Qingdao World Food Trailer Technology Co.,Ltd
INQUIRY

Model No.	CSP-48FT
Body Size	400021002500MM
Overall Size	550021002500MM
AXLES	2 * Torsion Axles
WHEELS	14*5.5,185R14LT
MOQ	1 SET
20GP	1 SET
40GP	2 SET

Including those items:

4000*2100*2500mm
Tow Bar：1500mm

V Nose House: 1000mm
Total :5500*2100*2500mm

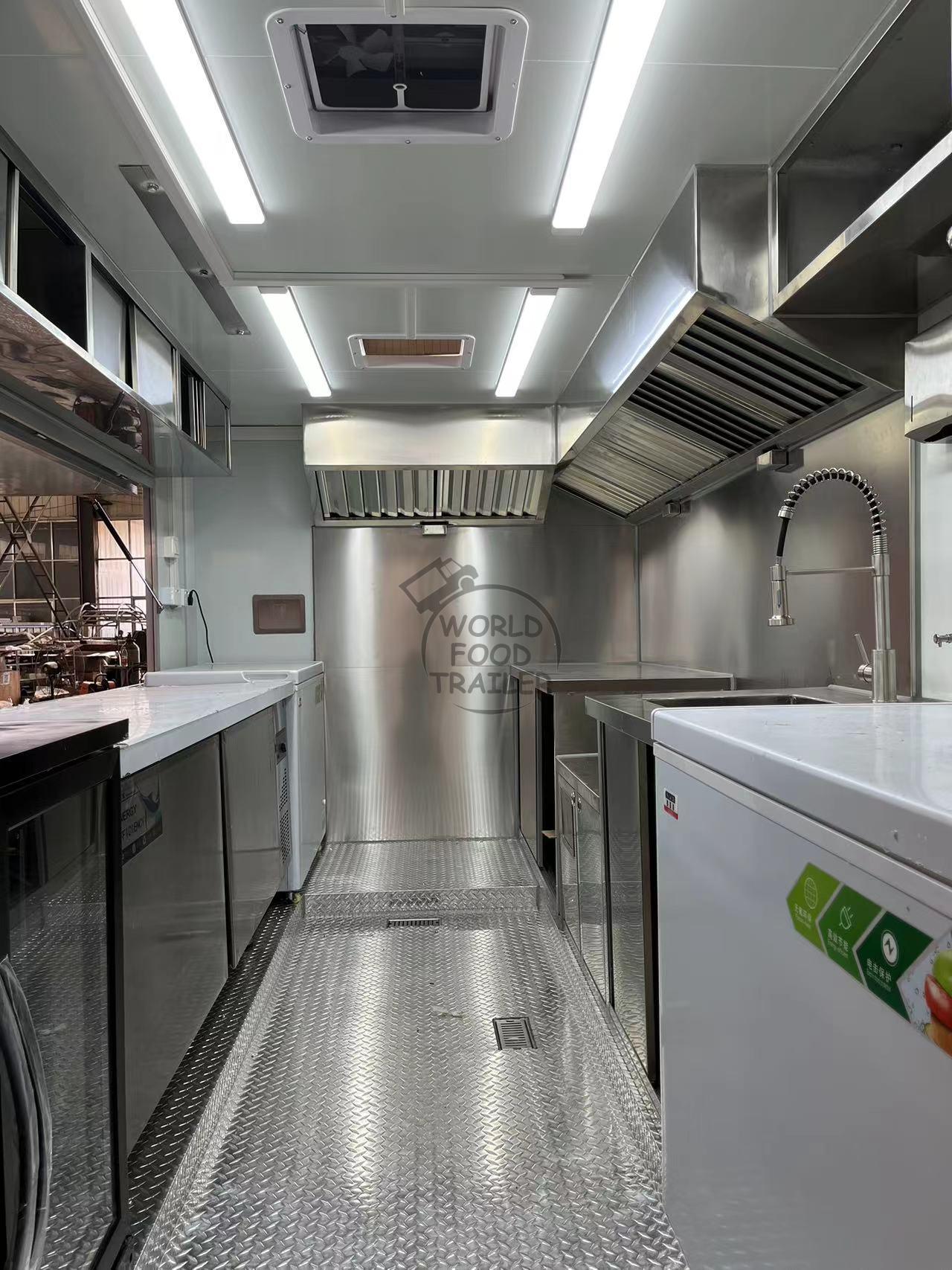

Double Wash Sinks & Pump, tanks, electric water heater
etc

Workbench & Cupboard (Stainless Steel 304)

Top Shelves + Range Hood with air filters+ Stainless Steel Walls

Cash Drawer
Working bench fridge( half fridge half freezer)

Basic Spec:

1) Wall:50mm Fiber Glass material with intermediate heat insulation cotton.

2) Chassis and Frame:Integral steel frame construction treated with rust resistant protective coating.
3) Towbar with brake:Drawbar with safety ball headed coupling.Electric Brake System.
4) Floor:Checked aluminum sheet,easy to be cleaned.
5) Power:LED light,cable socket switch circuit breaker based on global standard as needed are all included.
6) Window and door:1 door on back ,2 service window on side.1 window in front.
7) Working bench:food grade SUS 304 with sliding door undernearth.
8) Wheel:Two axles with 4*R14 wheels.Tires and high-speed bearings,5 leaves spring with high speed bearing.Max of loading is 8800 pound.
9) Gas holder:1 piece/welded on towbar/stainless steel.
10) Water systems:Heavy-duty water system plumbing with automatic water pump, 220/110V high pressure water pump; on/off control switch; Double stainless steel sinks with faucet, cold and hot water, fresh water tank and waste water tank.
11) Maximum Speed :150KPH.
12) Warranty:1 year
13) Character:Beauty Shapes,High Strengthen,Anti-Corrosion,Anti-dust,Fire-Resistance and so on.Suitable to be used in wet and high corrosive environment,smooth and easy to clean.

1: All of our mobile trailers were been made for many functions, such as fast food mobile kitchen,Pizza trailer, Coffee Trailer, Beer bar trailer, jacket potato kitchens, BBQ Trailers, Dog salon shops, fashion shops, and also for pet
washing etc.

2: The standard configuration includes stainless steel workbench, water sinks with hot/cold water system and electricity system with related standard power sockets
3: All our trailers can be custom-made for you, like the trailer size, color, logo, door and service window, inside equipment andinternal layout, One-stop service, Give us your thoughts and we help you to Realize it!

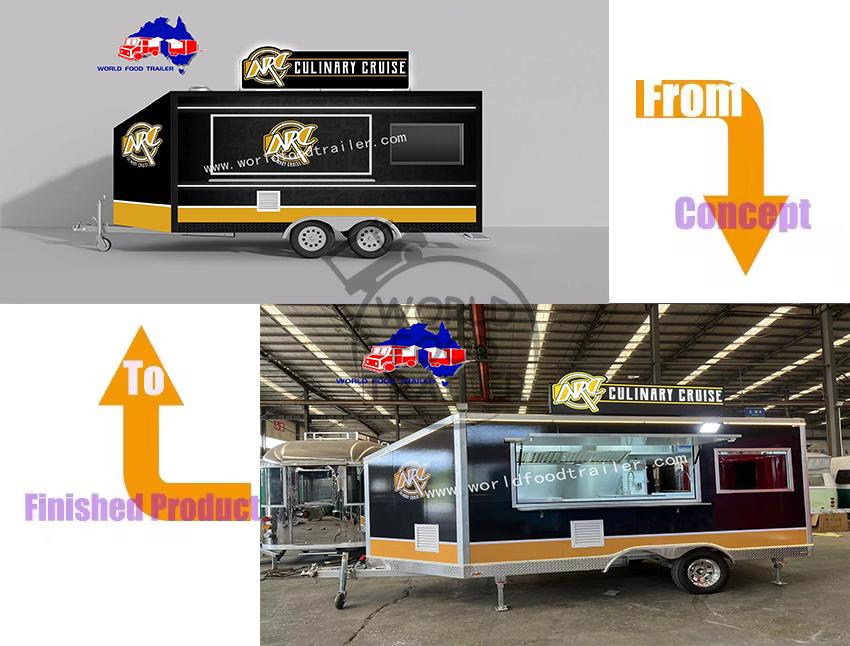

4: We can provide free 2D/3D drawing, and also door to door transportation if you need.
