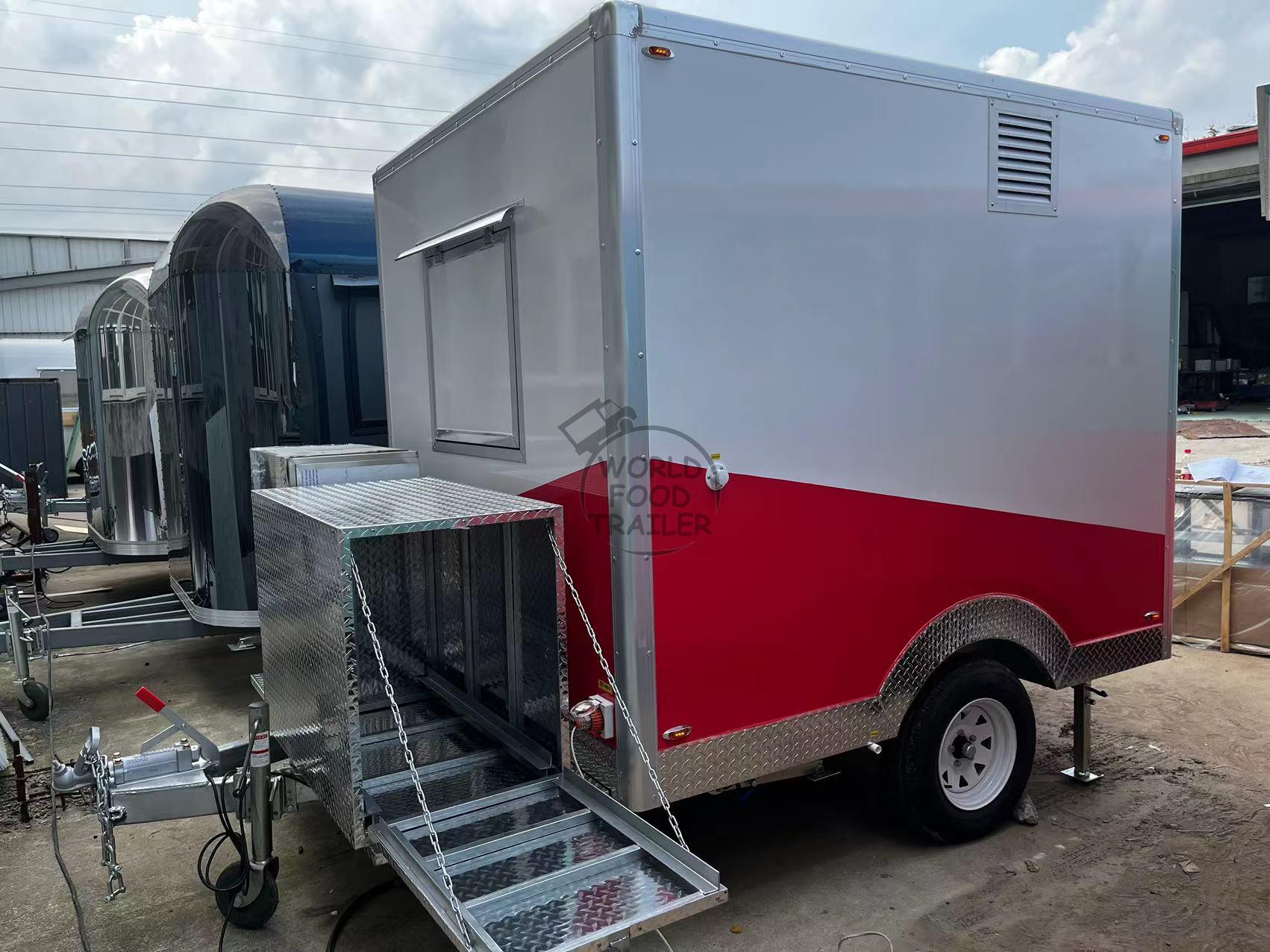

2.5 Meter Square Food Trailer, Australia Standard Box Trailer

size:2500mm*2100mm*2400mm
weight：1000KG
Tow Bar : 1500mm
AXLES: 1
Product description: WorldFoodTrailer-CSP HOLDING GROUP, Food Trailer, Food Truck, BBQ food trailer, 2.5 Meter Square Food Trailer, Australia Standard Box Trailer
INQUIRY

1.Product Description:Please noted that all trailer or vans sizes can be customized:

Model No.	CSP-48FT
Body Size	250021002400MM
Overall Size	400021002400MM
AXLES	1 * Torsion Axles
WHEELS	14*5.5,185R14LT
MOQ	1 SET
20GP	1 SET
40GP	2 SET

Including those items:

2500*2100*2400mm
Tow Bar：1500mm
Total :4000*2100*2400mm

Double Wash Sinks & Hand
Sink & Hand Basin & Pump, tanks, electric water heater
etc

Workbench & Cupboard (Stainless Steel 304)

Top Shelves + Range Hood with air filters+ Stainless Steel Walls

Cash Drawer
Working bench fridge( half fridge half freezer)

Generator + Generator Cage + Gas Bottle Holders
retractable step

Basic Spec:

1) Wall:50mm Fiber Glass material with intermediate heat insulation cotton.

2) Chassis and Frame:Integral steel frame construction treated with rust resistant protective coating.
3) Towbar with brake:Drawbar with safety ball headed coupling.Electric Brake System.
4) Floor:Checked aluminum sheet,easy to be cleaned.
5) Power:LED light,cable socket switch circuit breaker based on global standard as needed are all included.
6) Window and door:1 door on back ,2 service window on side.1 window in front.
7) Working bench:food grade SUS 304 with sliding door undernearth.
8) Wheel:Two axles with 4*R14 wheels.Tires and high-speed bearings,5 leaves spring with high speed bearing.Max of loading is 8800 pound.
9) Gas holder:1 piece/welded on towbar/stainless steel.
10) Water systems:Heavy-duty water system plumbing with automatic water pump, 220/110V high pressure water pump; on/off control switch; Double stainless steel sinks with faucet, cold and hot water, fresh water tank and waste water tank.
11) Maximum Speed :150KPH.
12) Warranty:1 year
13) Character:Beauty Shapes,High Strengthen,Anti-Corrosion,Anti-dust,Fire-Resistance and so on.Suitable to be used in wet and high corrosive environment,smooth and easy to clean.
