Home > SQUARE FOOD TRAILER

2.5 meters square food trailer with French Standard - 副本

size:2500mm*2100mm*2500mm
weight：800KG
Tow Bar : 1500mm
AXLES:1
Product description: 2.5 meters square food trailer with French Standard, CSP HOLDING GROUP, Food Trailer, Food Truck, BBQ food trailer, 2.5 meters French Standard Square Food Trailer, Box Mobile Trailer, Qingdao World Fo
INQUIRY

1.Product Description:Please noted that all trailer or vans sizes can be customized:

Model No.	CSP-48FT
Body Size	250021002500MM
Overall Size	400021002500MM
AXLES	1 * Axles
WHEELS	13*5.5,165R13LT
MOQ	1 SET
20GP	1 SET
40GP	2 SET

Including those items:

2500*2100*2500mm
Tow Bar：1500mm
Total :4000*2100*2500mm

Double Wash Sinks & Pump, tanks, electric water heater

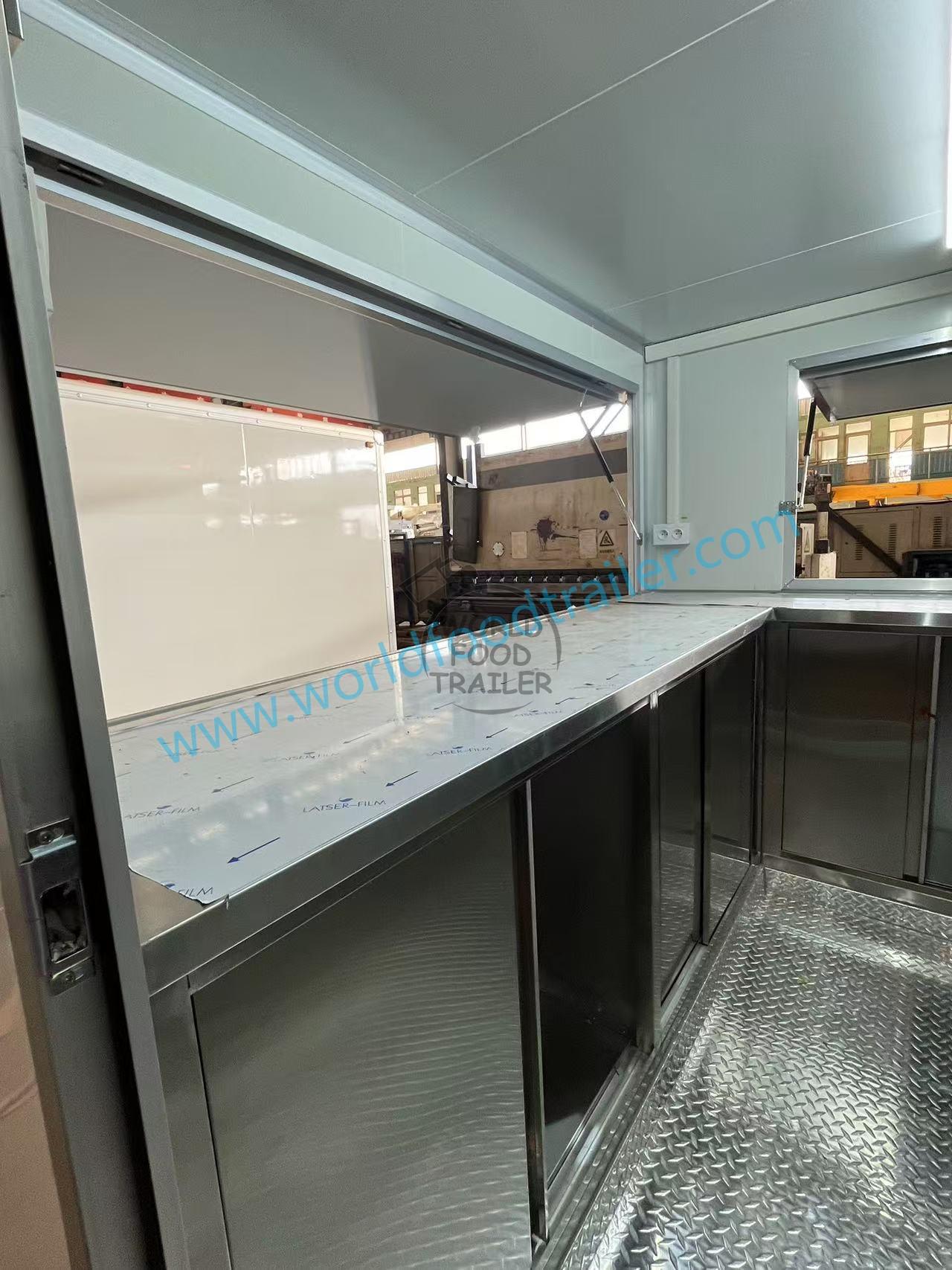

Workbench & Cupboard (Stainless Steel 304)
Wiring with Power Sockets, etc

Basic Spec:

1) Wall:50mm Fiber Glass material with intermediate heat insulation cotton.

2) Chassis and Frame:Integral steel frame construction treated with rust resistant protective coating.
3) Towbar with brake:Drawbar with safety ball headed coupling.Electric Brake System.
4) Floor:Checked aluminum sheet,easy to be cleaned.
5) Power:LED light,cable socket switch circuit breaker based on global standard as needed are all included.
6) Window and door:1 door on back ,2 service window on side.1 window in front.
7) Working bench:food grade SUS 304 with sliding door undernearth.
8) Wheel:Two axles with 4*R14 wheels.Tires and high-speed bearings,5 leaves spring with high speed bearing.Max of loading is 8800 pound.
9) Gas holder:1 piece/welded on towbar/stainless steel.
10) Water systems:Heavy-duty water system plumbing with automatic water pump, 220/110V high pressure water pump; on/off control switch; Double stainless steel sinks with faucet, cold and hot water, fresh water tank and waste water tank.
11) Maximum Speed :150KPH.
12) Warranty:1 year
13) Character:Beauty Shapes,High Strengthen,Anti-Corrosion,Anti-dust,Fire-Resistance and so on.Suitable to be used in wet and high corrosive environment,smooth and easy to clean.
