3.5 meters square food trailer with French Standard

size:3500mm*2100mm*2500mm
weight：1100KG
Tow Bar : 1500mm
AXLES:2
Product description: 3.5 meters square food trailer with French Standard, CSP HOLDING GROUP, Food Trailer, Food Truck, BBQ food trailer, 4 meters UK Standard Square Food Trailer, Box Mobile Trailer, Qingdao World Food Tra
INQUIRY

1.Product Description:Please noted that all trailer or vans sizes can be customized:

Food Trailer

Model No.	CSP-48FT
Body Size	350021002500MM
Overall Size	500021002500MM
AXLES	2 * Axles
WHEELS	14*5.5,185R14LT
MOQ	1 SET
20GP	1 SET
40GP	2 SET

Including those items:

3500*2100*2500mm
Tow Bar：1500mm
Total :5000*2100*2500mm

Double Wash Sinks & Pump, tanks, electric water heater

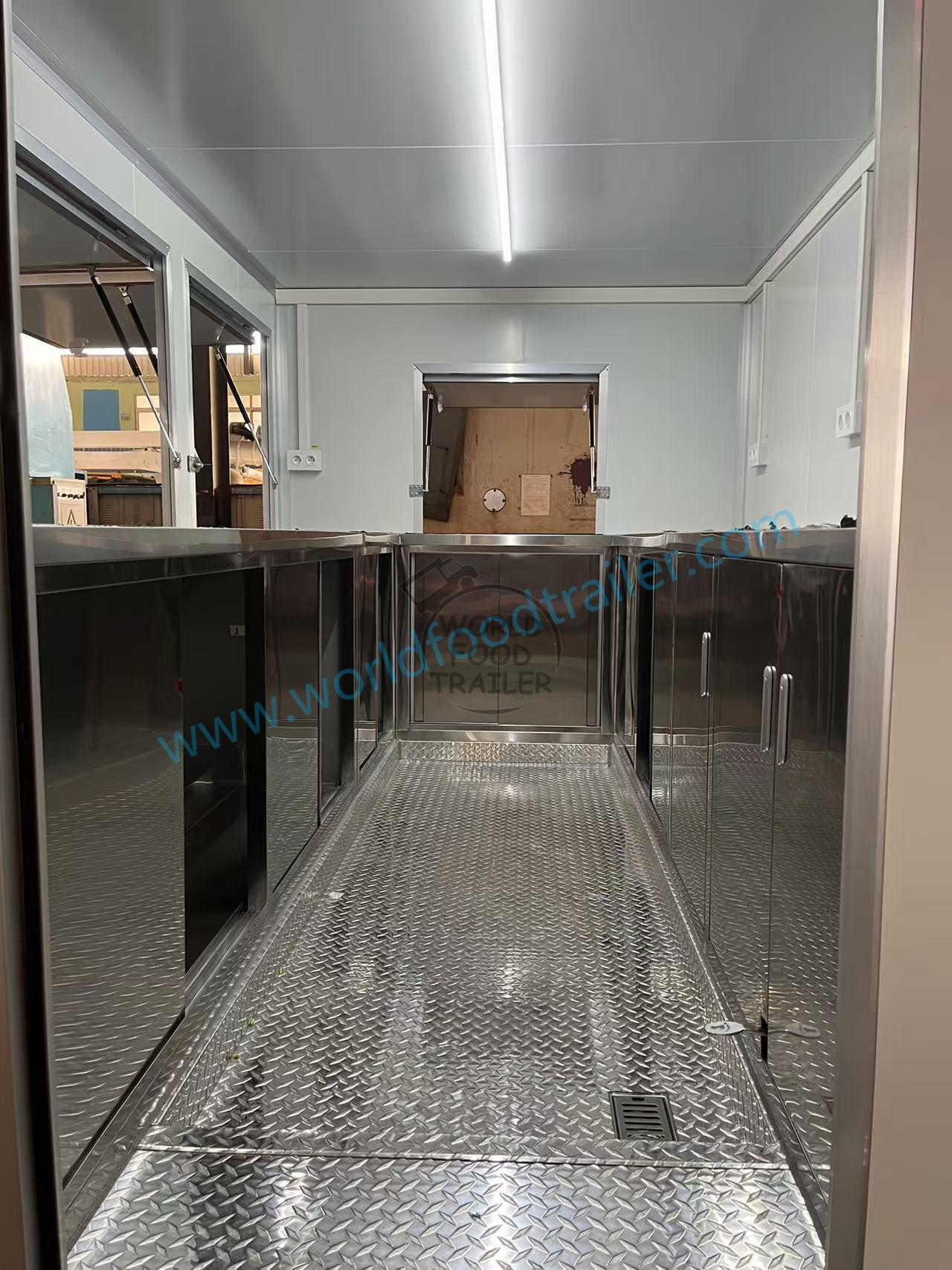

Workbench & Cupboard (Stainless Steel 304)
Wiring with Power Sockets, etc

Basic Spec:

1) Wall:50mm Fiber Glass material with intermediate heat insulation cotton.

2) Chassis and Frame:Integral steel frame construction treated with rust resistant protective coating.
3) Towbar with brake:Drawbar with safety ball headed coupling.Electric Brake System.
4) Floor:Checked aluminum sheet,easy to be cleaned.
5) Power:LED light,cable socket switch circuit breaker based on global standard as needed are all included.
6) Window and door:1 door on back ,2 service window on side.1 window in front.
7) Working bench:food grade SUS 304 with sliding door undernearth.
8) Wheel:Two axles with 4*R14 wheels.Tires and high-speed bearings,5 leaves spring with high speed bearing.Max of loading is 8800 pound.
9) Gas holder:1 piece/welded on towbar/stainless steel.
10) Water systems:Heavy-duty water system plumbing with automatic water pump, 220/110V high pressure water pump; on/off control switch; Double stainless steel sinks with faucet, cold and hot water, fresh water tank and waste water tank.
11) Maximum Speed :150KPH.
12) Warranty:1 year
13) Character:Beauty Shapes,High Strengthen,Anti-Corrosion,Anti-dust,Fire-Resistance and so on.Suitable to be used in wet and high corrosive environment,smooth and easy to clean.
